How to connect pigtails and jumper cables

Pigtails and jumper cables are used to create reliable connections in electrical, fiber optic, and automotive systems, each requiring specific techniques for safety and functionality.

Electrical Pigtails

In residential or commercial wiring, a pigtail is a short wire used to connect the main circuit wires to a device, such as an outlet or switch. This method ensures that the device is not directly dependent on the main circuit for continuity, preventing a single device failure from interrupting downstream power . Steps to connect electrical pigtails:

1. Turn off power at the main breaker and verify with a voltage tester.
2. Strip the insulation from the ends of the main wires and the pigtail wire.
3. Twist the main wires together with the pigtail using a wire nut.
4. Connect the pigtail to the device terminal.
5. Secure the device in the junction box and restore power. This method is required by the National Electrical Code for grounding conductors and ensures a safer, more reliable connection.

Fiber Optic Pigtails and Jumpers

In fiber optic networks, pigtails are short fiber cables with a connector on one end and a bare fiber on the other, used to splice into the main fiber line. Jumpers (or patch cables) have connectors on both ends and are used to link equipment to the network or between devices . Connection process:

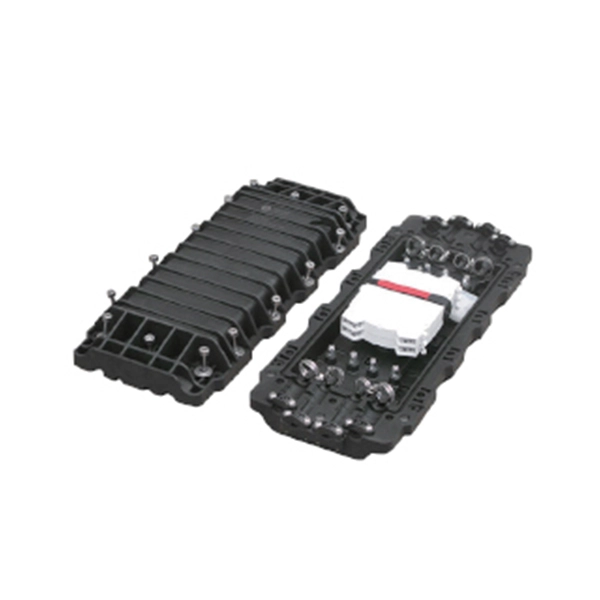

1. Splice the pigtail to the main fiber inside a fiber terminal box using a fusion splicer.
2. Route the pigtail to a patch panel or optical distribution frame.
3. Connect a fiber jumper from the pigtail connector to the optical transceiver or other network equipment.
4. Use couplers if connecting two pigtails or jumpers together. This setup converts optical signals to electrical signals via transceivers, enabling reliable data transmission.

Automotive Jumper Cables

For jump-starting vehicles, jumper cables connect a dead battery to a live battery. Proper connection order is critical to avoid sparks or damage :

1. Connect the red clamp to the positive terminal of the dead battery, then to the positive terminal of the donor battery.
2. Connect the black clamp to the negative terminal of the donor battery, and the other black clamp to an unpainted metal surface on the dead car.
3. Start the donor car, wait 5 minutes, then start the dead car.
4. Disconnect in reverse order and allow the jumped car to run to charge the battery.

Key Considerations

• Safety first: Always wear protective gear and ensure power is off for electrical work.
• Correct polarity: For both electrical and automotive connections, positive and negative terminals must be correctly identified.
• Proper splicing: In fiber optics, fusion splicing ensures minimal signal loss.
• Device isolation: Pigtails in electrical wiring prevent a single device failure from affecting the entire circuit. By following these methods, pigtails and jumper cables can be connected safely and effectively across different applications.
