Installation of a quad-network integrated optical splitter

A quad-network integrated optical splitter can be installed using centralized or cascaded architectures, with careful attention to placement, split ratios, and fiber routing to ensure optimal PON performance.

Understanding the Optical Splitter

An optical splitter is a passive device that divides a single optical signal from an OLT into multiple outputs for ONTs, enabling one fiber to serve multiple subscribers efficiently . Quad-network integrated splitters typically provide four outputs per input, allowing simultaneous distribution across multiple network segments. Splitters can be FBT (Fused Biconical Taper) for small splits or PLC (Planar Lightwave Circuit) for larger, uniform splits .

Splitter Architectures

1. Centralized Splitting
   • A single-stage splitter is installed near the OLT or in a central cabinet.
   • Structure: OLT → Optical Splitter → ONTs.
   • Advantages: Easy customer reassignment via jumpers, simplified maintenance, and reduced fiber usage on the feeder side .
   • Best for high-density areas where flexibility and centralized management are priorities.
2. Cascaded (Distributed) Splitting
   • Multiple splitters are connected in series, e.g., OLT → Splitter 1 → Splitter 2 → ONTs.
   • Advantages: Reduces the number of fibers required in the backbone, allows deployment closer to end users, and can optimize coverage in geographically dispersed areas .
   • Best for suburban or rural deployments where fiber conservation is critical.

Placement Considerations

• Indoor Installation: Community computer rooms, building wiring closets, or floor distribution boxes.
• Outdoor Installation: Fiber splitter boxes, pedestals, or closures designed for environmental protection .
• Ensure proper routing from first-level optical crossover boxes to the splitter and then to ONTs.
• Maintain minimum bend radius and secure fiber connections to prevent signal loss.

Installation Steps

1. Determine Split Ratio: Decide the number of outputs per OLT port (e.g., 1x4, 1x8) based on subscriber density and bandwidth requirements .
2. Select Architecture: Choose centralized or cascaded based on network layout, scalability, and cost.
3. Mount Splitter: Install in a secure, accessible location, ensuring environmental protection if outdoors.

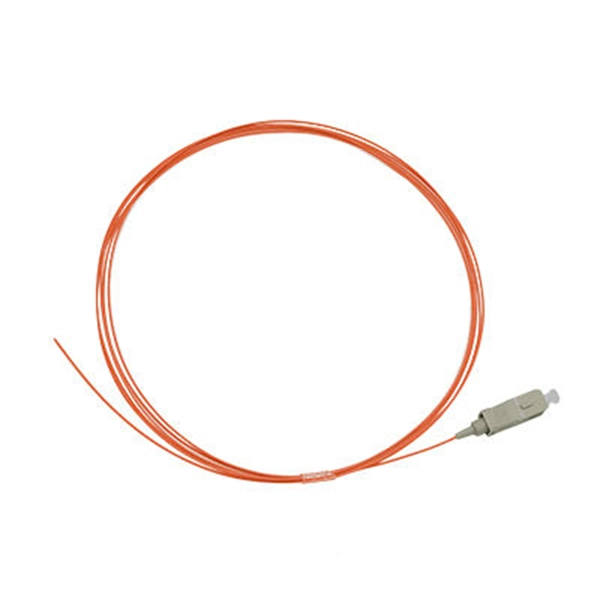

4. Connect Fibers: Use appropriate patch cords or pigtails to connect the OLT to the splitter input and splitter outputs to ONTs.
5. Test Signal Quality: Verify optical power levels and signal integrity to ensure minimal loss and proper distribution.
6. Document Configuration: Record splitter location, port assignments, and fiber routing for future maintenance and expansion.

Best Practices

• Use hybrid approaches if needed, combining centralized and cascaded splitting to optimize cost and performance .
• Plan for future scalability, leaving spare ports or outputs for additional subscribers.
• Ensure compliance with PON standards (e.g., ITU-T G.984 for GPON) to maintain interoperability and network reliability . By following these guidelines, a quad-network integrated optical splitter can be effectively deployed to provide reliable, scalable, and cost-efficient fiber distribution in a PON environment.
