Single-mode pigtail spliced ​​to multimode fiber optic cable

Directly splicing a single-mode pigtail to a multimode fiber is generally not recommended due to core size mismatch and high signal loss, but it can be done with careful planning and specialized techniques.

Core Differences and Compatibility

Single-mode (SM) fibers have a core diameter of ~9 µm, while multimode (MM) fibers typically have 50 µm or 62.5 µm cores. This difference causes significant insertion loss and modal dispersion if a single-mode pigtail is spliced directly to a multimode cable, because most of the light from the single-mode fiber will not couple efficiently into the multimode core .

Splicing Methods

1. Fusion Splicing: Provides the lowest loss and most reliable connection. However, fusing SM to MM fibers requires specialized splicing equipment and careful alignment to minimize loss. Even with precision, expect higher insertion loss than same-mode splices .
2. Mechanical Splicing: Uses a splice sleeve or gel to align fibers. This method is simpler but less efficient, and the mismatch between SM and MM cores can result in losses exceeding 1–2 dB, which may be unacceptable for high-performance networks .

Practical Considerations

• Use Mode Conditioning Patch Cables: In some cases, a mode conditioning patch cord can help transition between SM and MM fibers, especially for short distances or legacy equipment.
• Connector Choice: Ensure the pigtail connector (LC, SC, ST, etc.) matches the equipment port and fiber type .

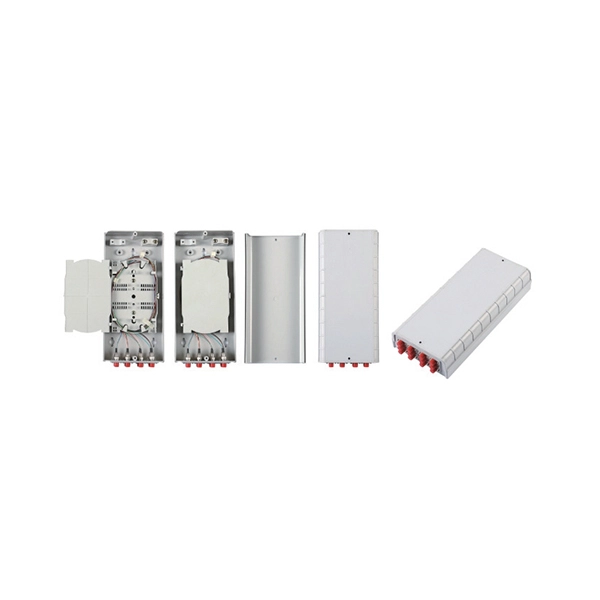

• Splice Tray and Buffer Matching: Match the buffer diameter of the pigtail to the splice tray and closure to avoid mechanical stress .
• Testing: After splicing, measure insertion loss and return loss to ensure the connection meets network specifications .

Recommendations

• Avoid direct SM-to-MM splicing for long-distance or high-speed applications due to signal degradation.
• If unavoidable, limit the distance of the mismatched segment and use mode conditioning or attenuators to reduce reflections and loss.
• For critical networks, consider replacing the multimode fiber with single-mode or using media converters to bridge SM and MM segments. In summary, while a single-mode pigtail can be spliced to a multimode fiber, it introduces high insertion loss and potential network performance issues. Proper planning, specialized splicing techniques, and testing are essential to maintain acceptable signal quality.
