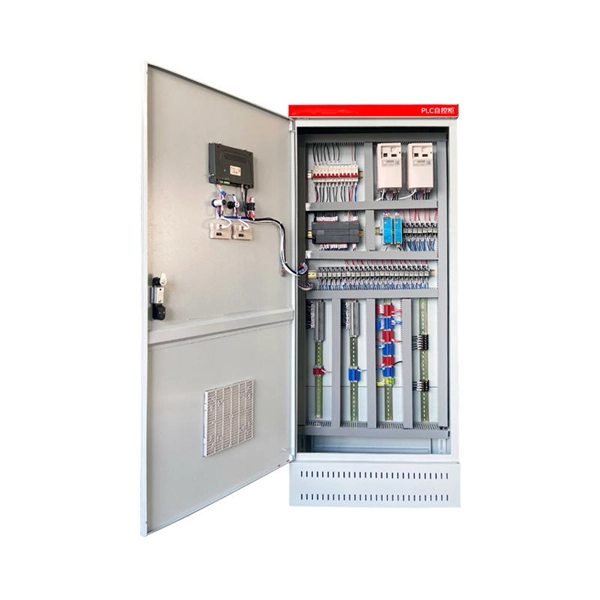

Connecting wires for components in the distribution box
Properly connecting wires in a distribution box involves sequentially wiring the main supply, protective devices, neutral, and earth links while following safety protocols.
Safety First
Before starting, ensure the main power supply is turned off to prevent electric shock. Use insulated tools and wear protective gear. Verify that the distribution box is securely mounted at an accessible height and in a dry, ventilated area .
Step-by-Step Wiring Process
- Main Supply Connection
- Connect the incoming live (phase) wire to the input terminal of the Main MCB (usually a double-pole MCB for domestic setups) and the neutral wire to the neutral input of the same MCB .
- The output of the Main MCB is then connected to the input of the RCCB (Residual Current Circuit Breaker) for additional protection.
- Connecting Circuit Breakers
- For single-pole MCBs (used for individual loads), connect the phase wire from the RCCB output to the input of each MCB.
- For double-pole MCBs (used for special loads), connect both phase and neutral wires from the RCCB output to the MCB input .
- Secure each wire tightly to prevent loose connections.
- Neutral and Earth Links
- Connect all neutral wires from the output of the RCCB to the neutral link bar.
- Connect all earth wires from the supply, loads, and metallic body of the distribution box to the earth link. If available, connect the earth wire from the earthing pit directly to the earth link .
- Load Connections
- For loads connected to single-pole MCBs, connect the phase wire to the MCB output, and the neutral and earth wires to the neutral and earth links respectively.
- For loads connected to double-pole MCBs, connect both phase and neutral wires to the MCB output, and the earth wire to the earth link .
- Verification
- After wiring, use a multimeter to check for continuity, correct voltage, and absence of short circuits.
- Ensure all wires are properly insulated and labeled for easy identification .
Additional Tips
- Use the correct wire gauge and MCB/RCCB ratings according to the load requirements.
- Maintain neat cable management to avoid tangling and overheating.
- Label each circuit for easier troubleshooting and future maintenance . Following these steps ensures a safe, organized, and efficient distribution box installation, minimizing the risk of electrical hazards and improving system reliability.
