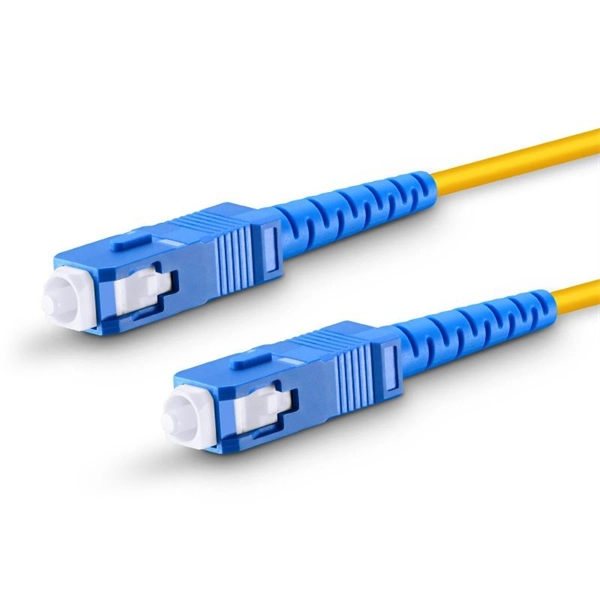

How to connect armored fiber optic patch cords and Huijue cables

Connecting Huijue armored fiber optic patch cords requires careful handling, proper stripping of the armor, and precise termination to ensure reliable optical performance.

Understanding Armored Fiber Patch Cords

Huijue armored fiber optic patch cords are reinforced with a protective layer, typically stainless steel or aramid yarn, around the fiber core. This design provides crush resistance, rodent protection, and durability in harsh environments, but also makes the cable stiffer and heavier than standard patch cords, requiring careful handling during installation .

Tools and Preparation

Before connecting the patch cords, gather the following tools:

• Fiber optic stripper and cutter suitable for armored cables
• Pliers or specialized armor separation tools
• Cleaning wipes and isopropyl alcohol for fiber end-face cleaning
• Connector adapters or patch panels compatible with the cord type (LC, SC, FC, etc.)
• Safety gloves and eye protection Inspect the cable for visible damage, confirm the fiber type (single-mode or multimode), and check the connector type and polarity .

Step-by-Step Connection Process

1. Route the Cable Carefully Ensure the cable path avoids sharp edges, excessive bends, or high-tension areas. Armored cables require a larger minimum bend radius than standard fiber .
2. Strip the Armor
   • Bend the cable slightly near the end to loosen the armor.
   • Use pliers or a specialized tool to twist and separate the interlocked steel armor from the fiber core.
   • Trim any protruding metal edges with side cutters and remove any paper or plastic wrapping .
3. Prepare the Fiber Core
   • Strip the outer jacket and aramid yarn carefully without nicking the fiber.
   • Clean the exposed fiber with isopropyl alcohol and lint-free wipes to remove debris and oils .
4. Terminate or Connect
   • Insert the prepared fiber into the connector ferrule or patch panel adapter.
   • Ensure proper alignment and secure the connector according to the manufacturer's instructions.
   • Avoid pulling or twisting the fiber during insertion to prevent microbends or signal loss .
5. Test the Connection
   • Use an optical power meter or OTDR to verify signal integrity and low insertion loss.
   • Confirm that the connection meets the required performance specifications for your network .

Additional Tips

• Always handle armored patch cords gently; the steel armor protects the fiber but does not make it immune to bending or crushing.
• For outdoor or industrial installations, ensure the connectors and adapters are rated for environmental exposure.
• If adjusting cable length, cut the armor carefully and discard excess material to avoid sharp edges. By following these steps, Huijue armored fiber optic patch cords can be connected safely and efficiently, ensuring durable, high-performance optical links in demanding environments .
