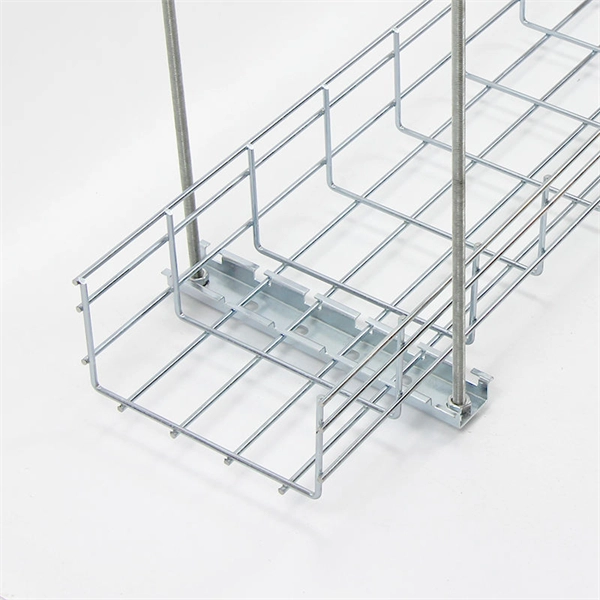

Common Network Cable Tray Materials

Common network cable tray materials include galvanized steel, stainless steel, aluminum, fiberglass reinforced plastic (FRP), and PVC, each chosen based on strength, corrosion resistance, and environmental conditions.

Metal Cable Trays

Galvanized Steel: Highly durable and strong, galvanized steel trays are ideal for heavy cable loads and industrial environments. The zinc coating protects against rust and corrosion, making them suitable for both indoor and outdoor applications . Stainless Steel: Stainless steel trays, often made from AISI 316L, offer excellent corrosion resistance, especially in chemically aggressive or coastal environments. They are ideal for harsh conditions where exposure to moisture, salt, or chemicals is expected . Aluminum: Lightweight and naturally corrosion-resistant, aluminum trays are easy to install and handle. They are suitable for indoor and some outdoor applications, particularly where weight reduction is important. However, aluminum is less strong than steel and may deform under heavy loads .

Non-Metal Cable Trays

Fiberglass Reinforced Plastic (FRP): FRP trays are highly resistant to corrosion, chemicals, and moisture, making them ideal for chemical plants, marine environments, or areas with high humidity. They are lightweight and provide a high resistance-to-weight ratio compared to steel . Plastic/PVC: Plastic trays are cost-effective, corrosion-proof, and lightweight. They are suitable for light-duty applications, such as low-voltage or fiber optic cables, but cannot support heavy cable loads or withstand harsh mechanical stress .

Material Selection Considerations

When choosing a cable tray material, consider:

• Environmental Conditions: Indoor vs. outdoor, exposure to chemicals, moisture, or extreme temperatures .
• Load Capacity: Ensure the tray can support the total weight of cables without sagging .
• Durability and Maintenance: Metal trays generally offer higher strength and longevity, while FRP and PVC provide corrosion resistance with lower mechanical strength .
• Installation and Cost: Aluminum and plastic trays are easier to handle and install, whereas steel trays may require more support but offer superior load-bearing capacity . Selecting the right material ensures safety, longevity, and efficient cable management, while also accommodating future expansions and maintenance needs .
