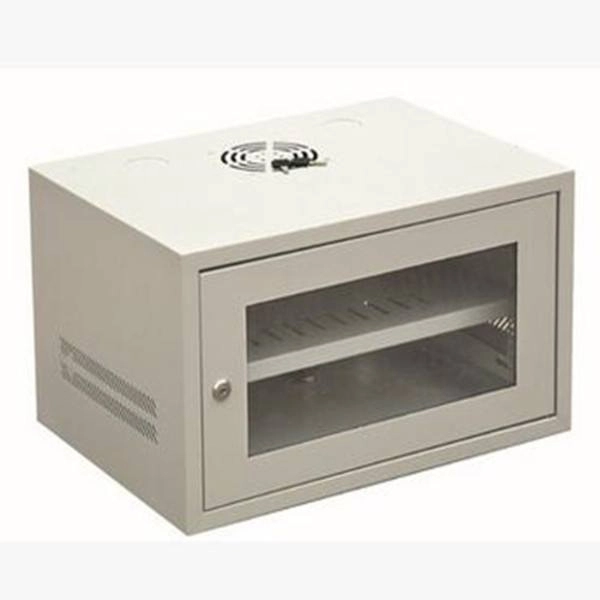

Cable tray cabinet connection

Cable tray cabinets can be securely connected using splice plates, bolted connections, quick connect systems, clamps, or welding, depending on load, speed, and maintenance needs.

Key Steps for Connecting Cable Tray Cabinets

1. Align the Tray Sections Before connecting, ensure the ends of the cable tray cabinets are properly aligned and level. Misalignment can cause sagging or stress on the trays and cables, compromising safety and durability . 2. Choose the Connection Method

• Splice Plates (Flat Metal Plates): Bolt a flat metal plate with pre-drilled holes to the ends of two tray sections. This method is very strong, works with most tray types, and allows future disassembly for maintenance .
• Bolted Connections: Use bolts, nuts, and washers to secure splice plates or other fittings. This method is reliable and standard for general-purpose connections but requires tools like spanners or torque wrenches .
• Quick Connect Systems: Snap, slide, or twist systems allow fast installation with minimal tools. Ideal for large projects or when using trays from a single manufacturer. They can reduce installation time by 30–50% .
• Clamps: Mechanical clamps can join trays without drilling, providing flexibility for adjustments and quick assembly .
• Welding: Provides a permanent, very strong connection, suitable for heavy-duty or high-vibration environments, but is less flexible for future modifications . 3. Secure the Connection After selecting the method, tighten all bolts or fasteners according to manufacturer specifications. Ensure that the connection is firm to prevent sagging, movement, or electrical hazards . 4. Grounding and Bonding If the cable tray system is used as an Equipment Grounding Conductor (EGC), ensure all sections are electrically continuous and properly bonded. Use grounding straps or bonding jumpers as required by NEC 392.60 . 5. Inspect and Test Check that all connections are level, secure, and free of sharp edges that could damage cables. Verify that the trays can support the intended cable load without deflection .

Additional Tips

• Use a cable tray roller for long runs to prevent kinks when laying cables .
• Maintain proper support spacing (typically 1.5–3 meters) to ensure stability .
• For angled connections, use L, T, or cross-shaped plates to join trays at junctions .
• Always follow local electrical codes and manufacturer guidelines for tray fill, spacing, and grounding . By following these steps and selecting the appropriate connection method, cable tray cabinets can be joined securely, ensuring system stability, safety, and ease of maintenance.
